Double grinding heads high efficiency industrial tank vessel automatic polishing sanding machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-YT |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Double Grinding Heads Tank Vessel Sanding Polishing Machine | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 3600kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Usage | Tank Vessel Surface Cleaning,rust Removal |
| Polishing Efficiency | 12-20 M2 Per Hour | Warranty | 1 Year |
| Atfer-sales Service | Video Support/Engineer Oversea/Technical Online | Provide | ODM & OEM |
| Highlight | Automatic Tank Vessel Polishing Machine,Industrial Tank Vessel Polishing Machine,Double Grinding Heads Polishing Machine |
||
Product Description
Double Grinding Heads High Efficiency Industrial Tank Vessel Automatic Polishing Sanding Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Double grinding heads tank vessel sanding polishing machine |
| Dimension | 3500x1600x3080mm |
| Weight | 3600kg |
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Usage | Tank vessel surface cleaning, rust removal |
| Polishing Efficiency | 12-20 m² per hour |
| Warranty | 1 year |
| After-sales service | Video support/Engineer oversea/Technical online |
| Provide | ODM & OEM |
Product Description

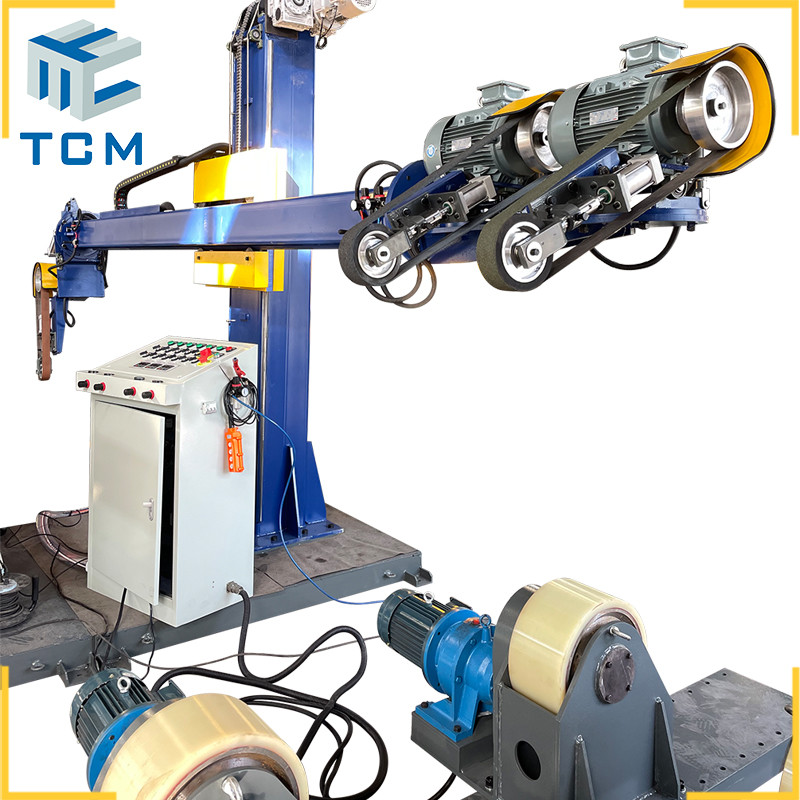

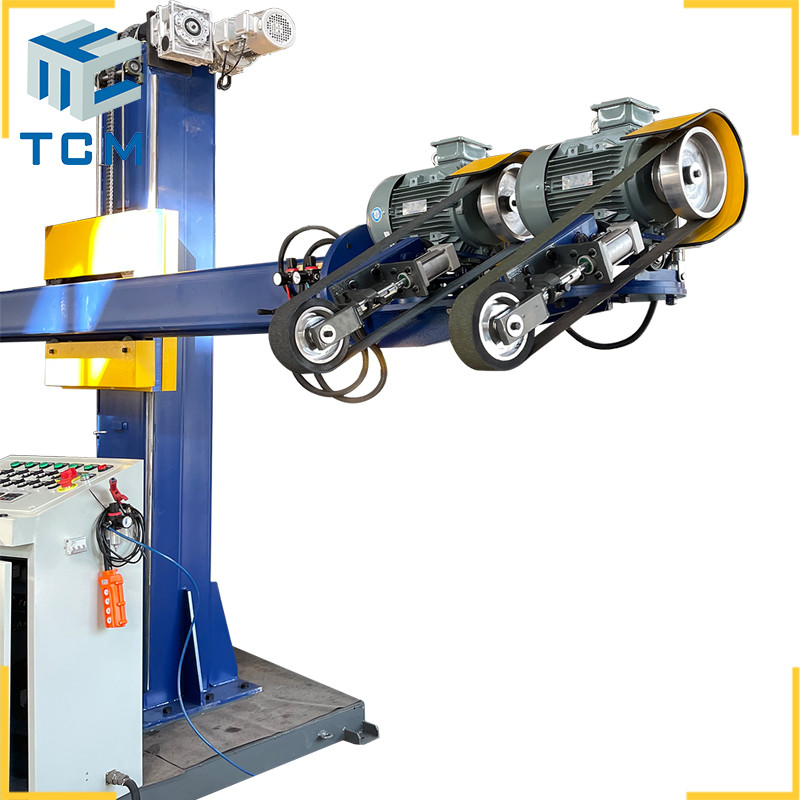

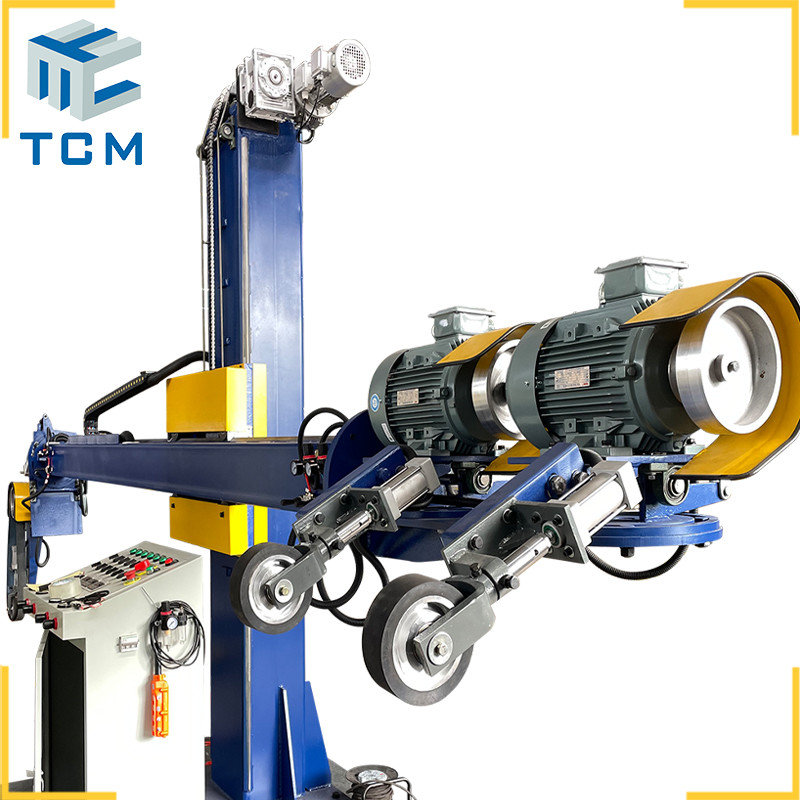

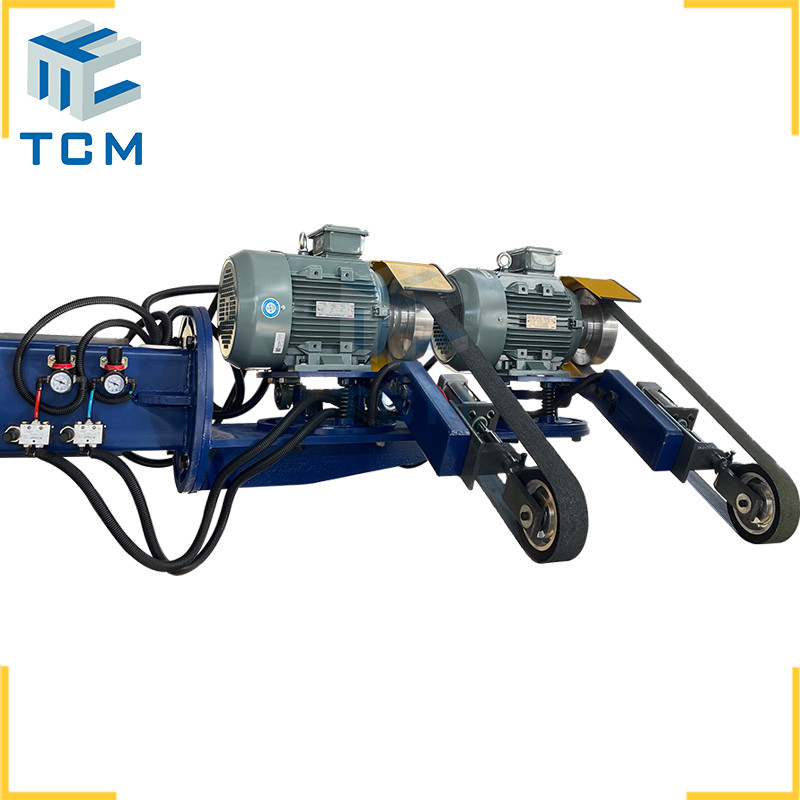

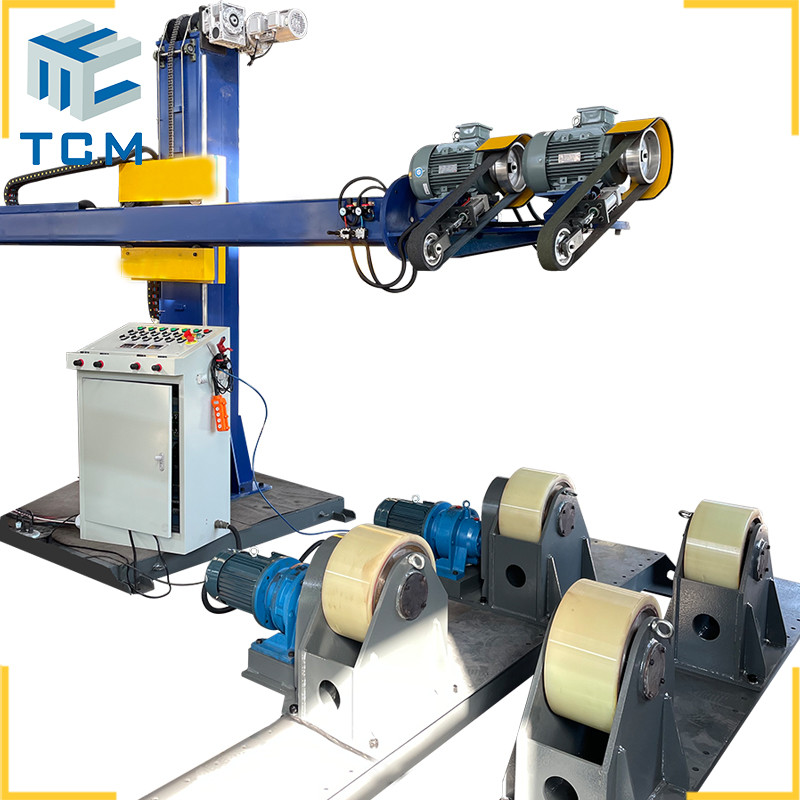

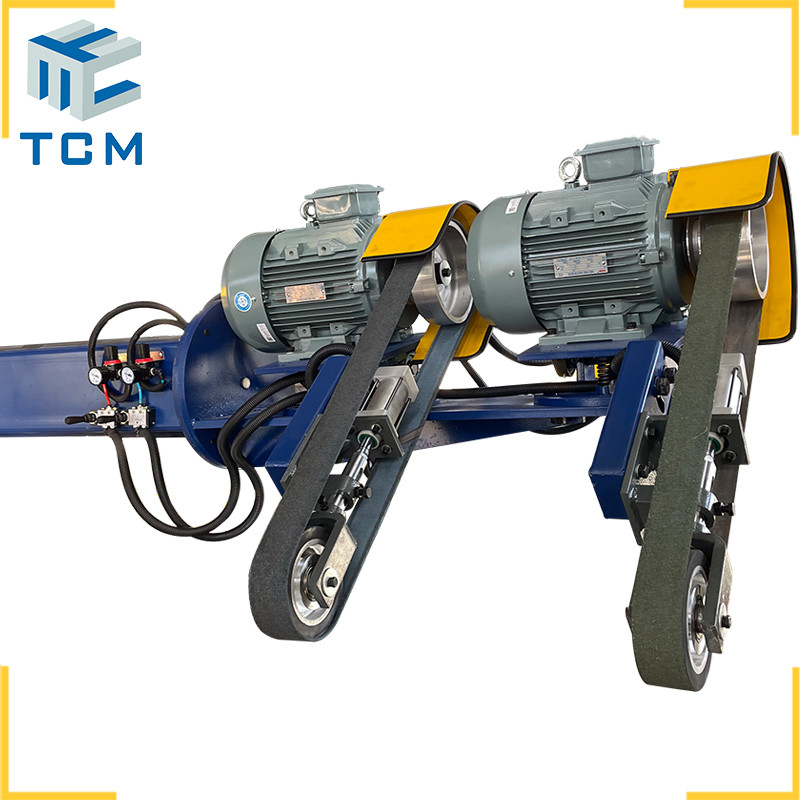

The TCM-YT column and boom manipulator polishing machine is a 2-in-1 dual-use multifunction automatic polishing machine designed for stainless steel cylinder shells and tank cap interior & exterior surface grinding and buffing. This model features two polishing motors on each side of the machine beam (boom) for economical and environmental operation.
The machine is specifically designed for both tank shell and dished head tank cap surface treatments, including polishing, grinding, and buffing. It accommodates different workpieces like tank bodies, tank heads, and dish ends, using impellers with various grinding mesh grits to meet specific polishing requirements.
Key Features
- Maximum loading capacity: 5 ton cylinder tank rotatory roller
- 2 ton maximum loading capacity for tank caps rotary table clamping system
- Wide application in medical, chemical, environmental purification, food and beverage, and water filtration industries
- Custom made services available
Technical Parameters
| Parameter | Specification |
|---|---|
| Steel metal tank size (Outside diameter) | 400~5000mm / 7000 mm |
| Steel metal tank size (Inside diameter) | 400~5000mm / 7000 mm |
| Length | <=5000mm / 8000 mm |
| Tank Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
| Dish end/Tank Head Size | 450~5000mm / 6000 mm |
| Turntable Max.loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton |
| Polishing Precision (Surface roughness Ra) | <=0.25μm |
| Production Efficiency | 6~12 m²/h |
| Total Dimension | 4500*1600*3080mm |
| Input total Power | 15 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3600kg |
| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Product Images
