Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine

  • Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
  • Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
  • Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
  • Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
  • Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
  • Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-WP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product_name Hydraulic Cylinder Chromed Rod Grinding Linishing Machine Dimension 14500*1200*1200mm
Weight 2500kg Color Blue/Red/Grey
Voltage 380V 400V 415V Etc Warranty 18 Month
Highlight

Rod Surface Automatic Pipe Polishing Machine

,

380V Automatic Pipe Polishing Machine

,

400V Automatic Grinding Linishing Machine
Leave a Message
Product Description
Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine
Product Specifications
Attribute Value
Product Name Hydraulic cylinder chromed rod grinding linishing machine
Dimension 14500 × 1200 × 1200mm
Weight 2500kg
Color Blue/Red/Grey
Voltage 380V 400V 415V etc
Warranty 18 Month
Product Overview

The Trancar Industries Model TCM-WP automatic grinding machine is specifically designed for hydraulic cylinder chromed rod surface grinding and linishing. This versatile machine can also handle steel cylinder products surface grinding, including steel tube pipes, round solid bars, and hydraulic cylinder exterior surfaces.

Key Features
  • Equipped with double variable frequency grinding motors (7.5 KW each)
  • Supports both grinding wheels and abrasive sanding belts
  • Wide application across multiple industries including pharmaceutical, medical, food processing, water purification, and more
  • Customizable configurations available
Technical Parameters
Parameter Specification
Chromed Rod Max. Diameter 40-800 mm
Thickness 3-10 mm
Length ≤12,000 mm
Machine Dimension 14500 × 1200 × 1200mm
Rod Roller Max. Loading Capacity 1 Ton / 2 Ton / 5 Ton / 7 Ton /8 Ton options
Polishing Precision (Surface roughness Ra) ≤0.25μm
Production Efficiency 6~12 m²/h
Input Total Power 22 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 3800kg
Color Options Grey/Green/Blue/Red/Yellow (Custom design available)
Suitable Polishing Materials Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Optional Features Water cooling system available during polishing
Product Images

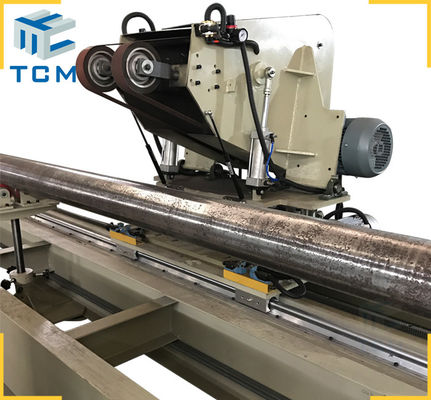

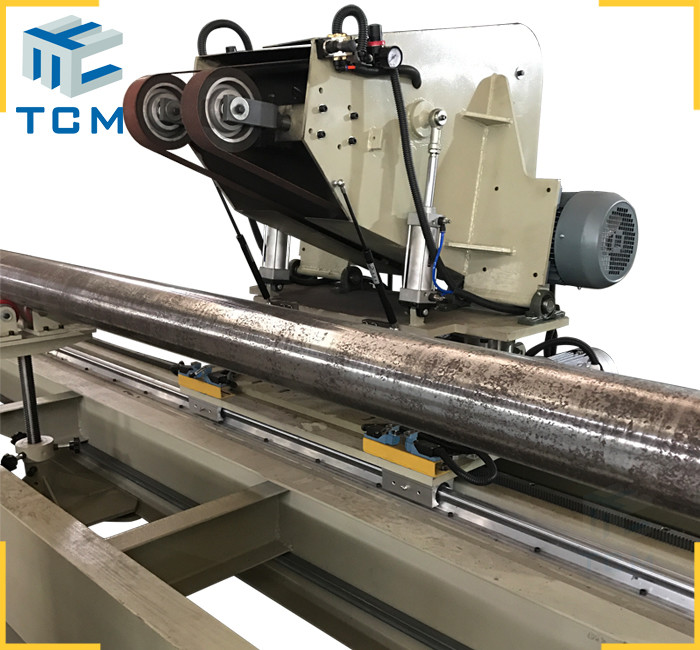

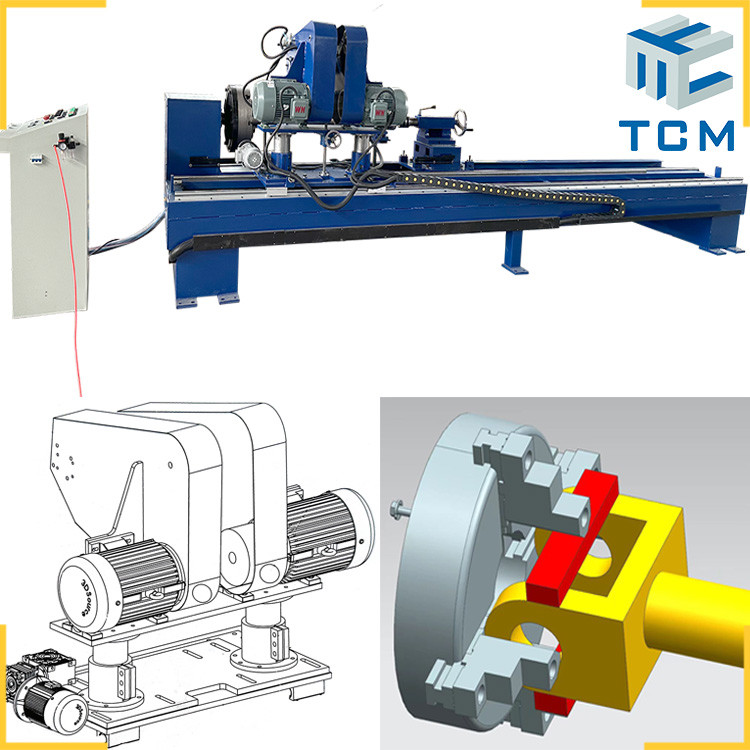

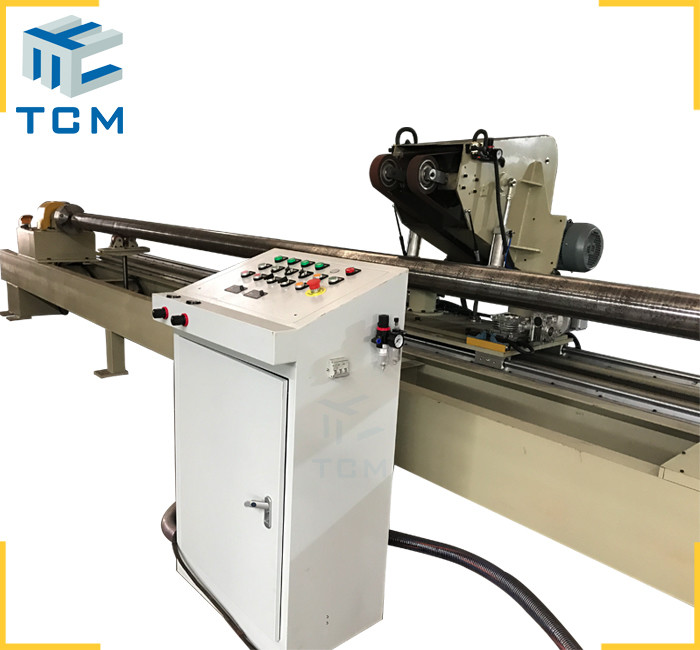

Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine 0 Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine 1
Packaging & Delivery
  • Standard packaging: Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements

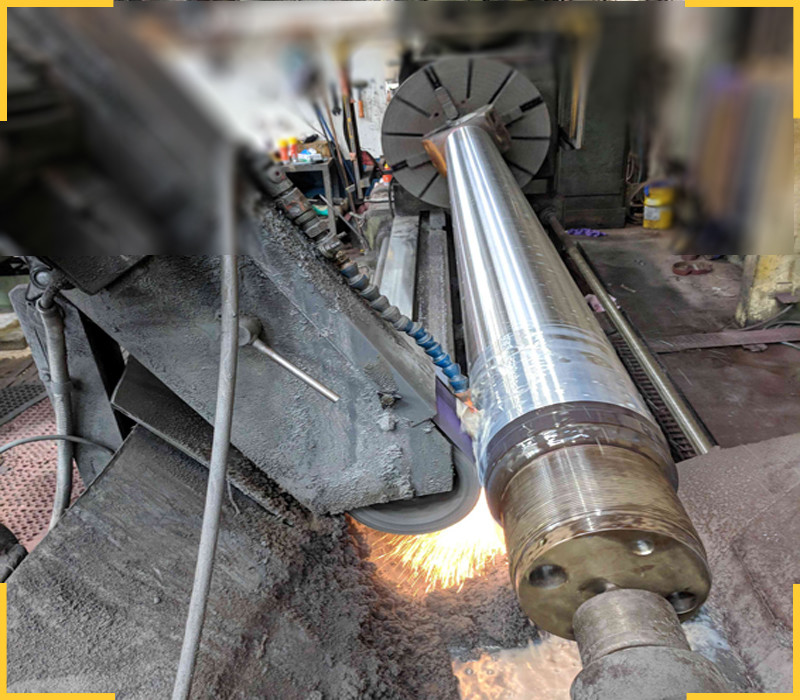

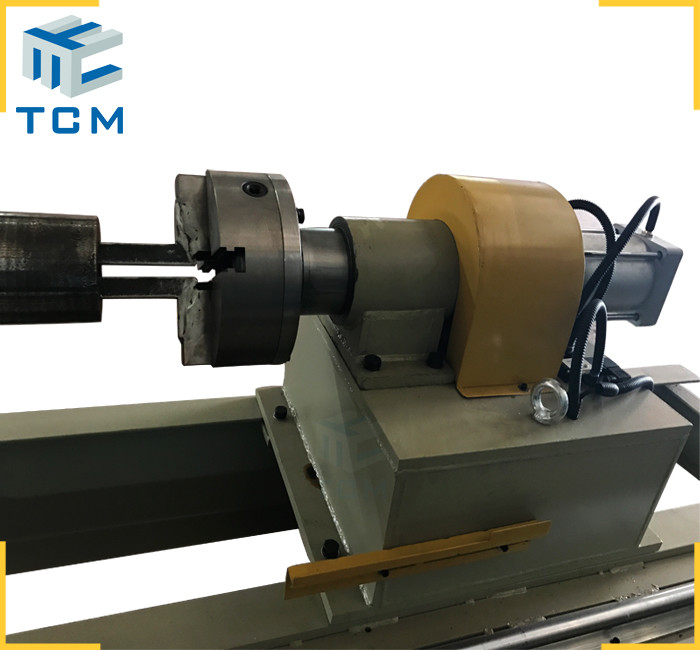

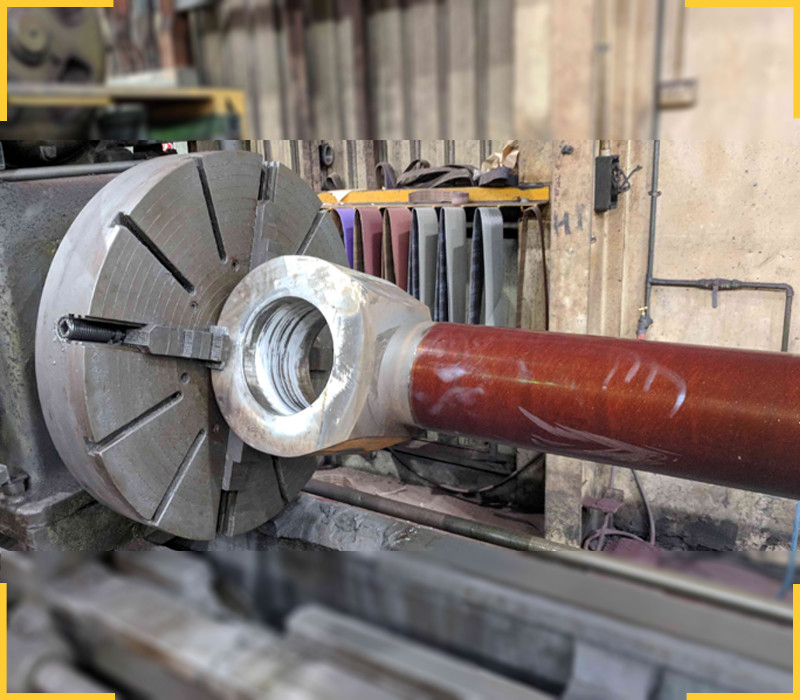

Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine 2 Hydraulic Cylinder Chromed Rod Surface Automatic Grinding Linishing Machine 3
For more information about our Hydraulic Cylinder Chromed Rod Grinding Linishing Machine, please contact us with your specific rod data. We will provide the best grinding solution tailored to your requirements.
