Steel Round Pipe Tube Exterior Surface Automatic Polishing Grinding Machine CE

Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-WP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ipe Tube Exterior Surface Automatic Polishing Grinding Machine Dimension 14500*1200*1200mm
Weight 2500kg Color Blue/Red/Grey
Voltage 380V 400V 415V Etc Warranty 18 Month
Usage Steel Pipe Tube Surface Polishing Linishing Condition 100% New
After-sales Service Video Support/Engineer Oversea Service Provide ODM & OEM
Highlight

Round Pipe Automatic Polishing Grinding Machine

,

380V Automatic Polishing Grinding Machine

,

CE tank polishing machine

Leave a Message
Product Description
Steel Round Pipe Tube Exterior Surface Automatic Polishing Grinding Machine CE
Product Specifications
Product Name Pipe tube exterior surface automatic polishing grinding machine
Dimension 14500×1200×1200mm
Weight 2500kg
Color Blue/Red/Grey
Voltage 380V 400V 415V etc
Warranty 18 Month
Usage Steel pipe tube surface polishing linishing
Condition 100% new
After-sales Service Video support/Engineer oversea service
Provide ODM & OEM
Product Description

The Trancar Industries Model TCM-WP automatic grinding machine is designed for hydraulic cylinder chromed rod surface grinding and linishing. This versatile machine can also polish steel tube pipes, round solid bars, and hydraulic cylinder exterior surfaces mechanically.

The machine features double variable frequency grinding motors (7.5 KW each) and can utilize both grinding wheels and abrasive sanding belts. It serves various industries including pharmaceutical, medical, food processing, water purification, pressure vessels, cosmetics, wastewater treatment, semiconductor, and photovoltaic industries.

Technical Parameters
Steel Metal Pipe Size (Max. Diameter) 40-800 mm
Thickness 3-10 mm
Length ≤12,000 mm
Machine Dimension (L×W×H) 14500×1200×1200 mm
Pipe Roller Max. Loading Capacity 1 Ton / 2 Ton / 5 Ton / 7Ton (options available)
Polishing Precision (Surface roughness Ra) ≤0.25μm
Production Efficiency (Polishing speed) 6~12 m²/h
Input Total Power 22 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 3800kg
Color Options Grey/Green/Blue/Red/Yellow (Custom design available)
Suitable Polishing Materials Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Optional Features Water cooling system available during polishing
Product Images

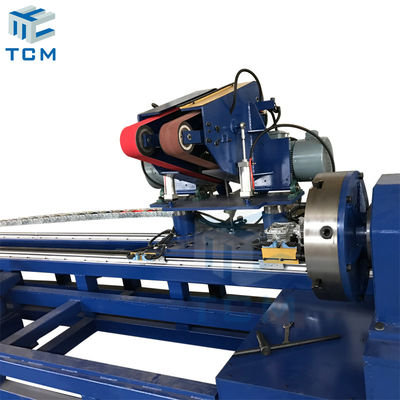

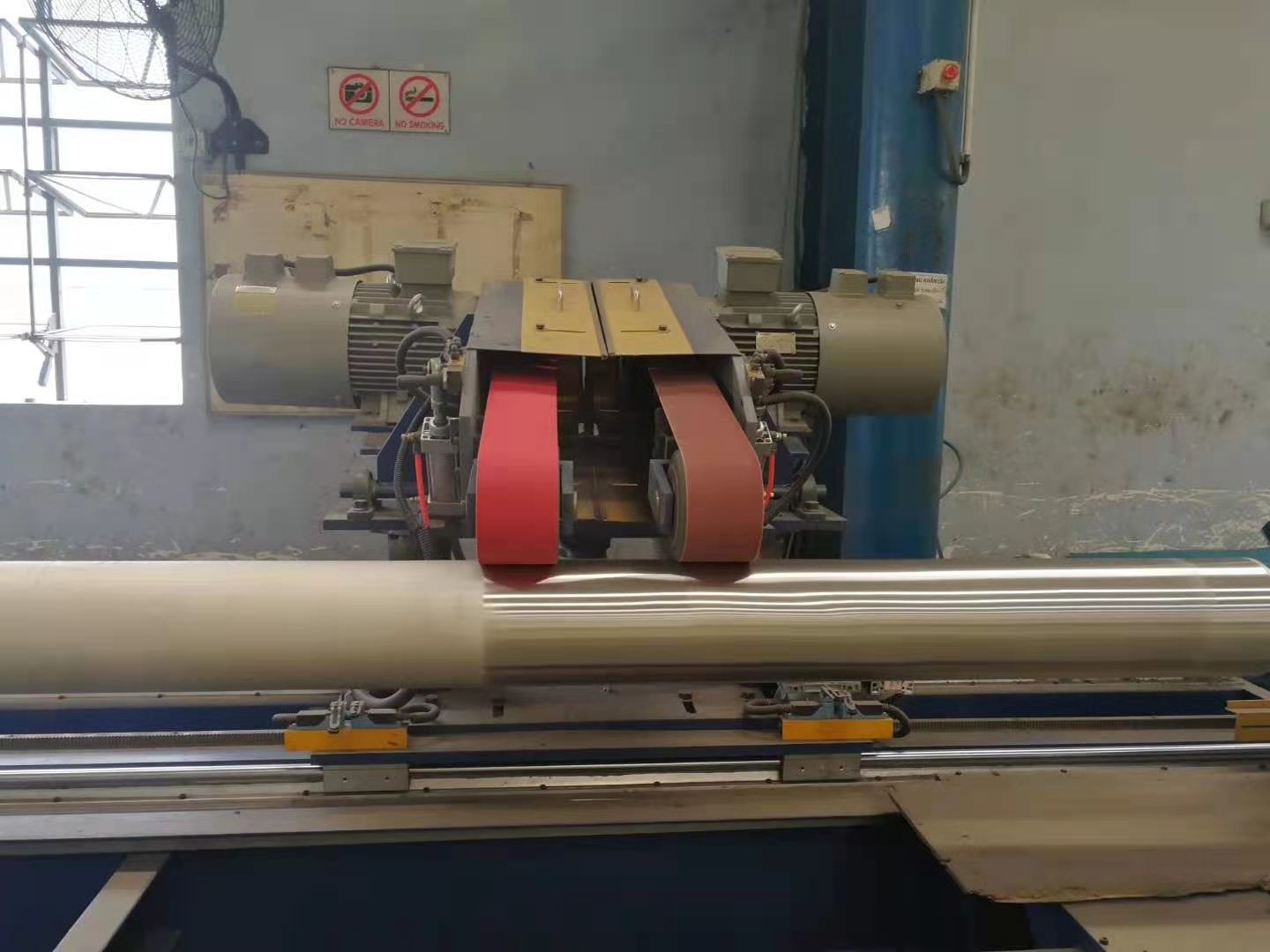

Steel Round Pipe Tube Exterior Surface Automatic Polishing Grinding Machine CE 0 Steel Round Pipe Tube Exterior Surface Automatic Polishing Grinding Machine CE 1
Packaging & Delivery
  • Standard packaging: Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements

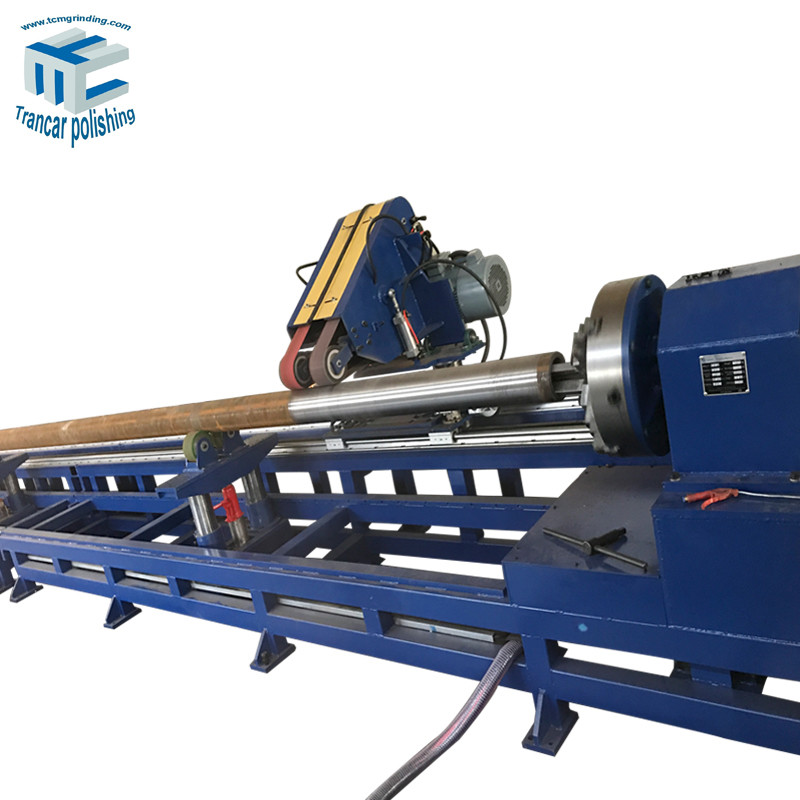

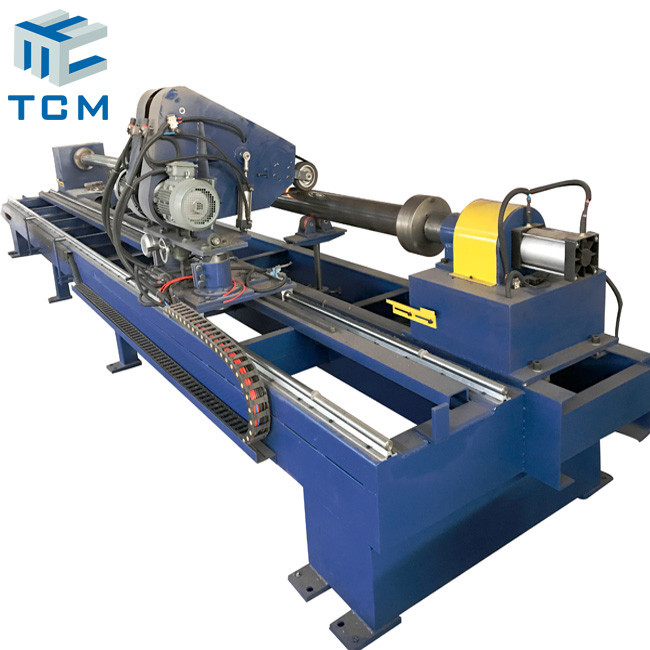

Steel Round Pipe Tube Exterior Surface Automatic Polishing Grinding Machine CE 2 Steel Round Pipe Tube Exterior Surface Automatic Polishing Grinding Machine CE 3
